Kenwood KFC-WPS1000F
Kenwood KFC-WPS1000F
Regular price
$399.00 AUD
Regular price
Sale price
$399.00 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
DISCLAIMER - DUE TO THE WEIGHT & DIMENTIONS OF THIS ITEM PLEASE CONTACT US DIRECTLY FOR FREIGHT PRICING

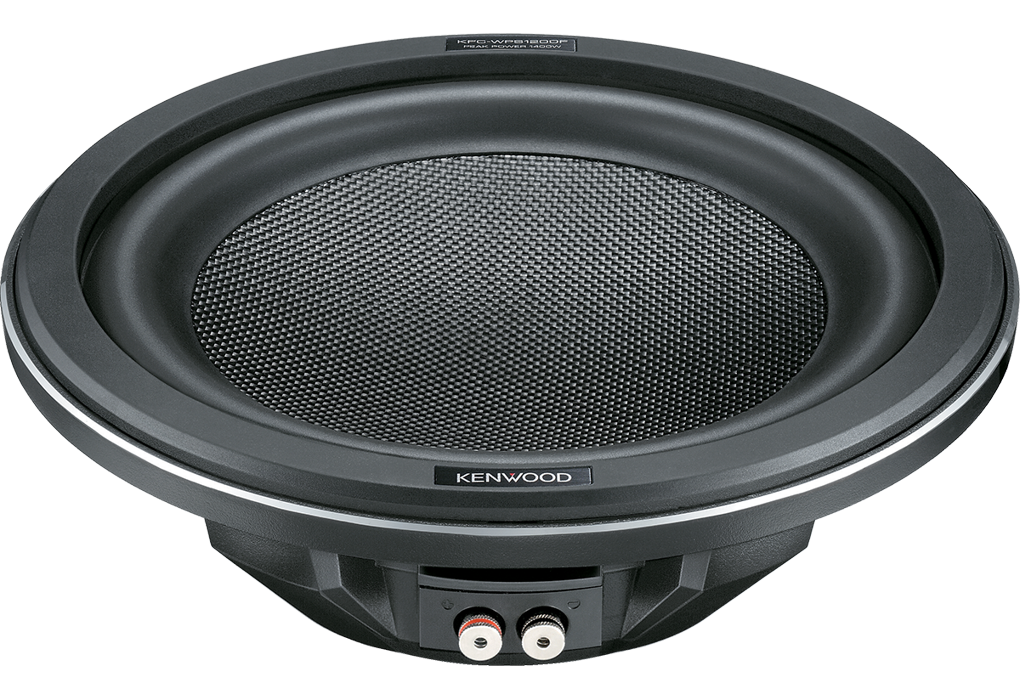

Kenwood's flagship subwoofer, the KFC-WPS1000F, delivers unbelievable performance as it boasts a peak power output of 1000W. Reassuring durability even during long hours of high-output operation can also be enjoyed as the speaker unit is designed to dissipate heat effectively away from the motor system. A die-cast aluminum basket is employed to further reduce heat and improve power-handling characteristics while multiple fins enhance ventilation and rigidity for supporting the large motor. Four vents are positioned around the basket to ensure that the entire subwoofer is always properly cooled.
| Key Features | 250mm Carbon-Glass Fiber Honeycomb Cone Subwoofer | |
| Super Linear Spider | ||
| Smooth Linear Surround | ||
| Heat transfer structure | ||
| Shallow Mount | ||
| Speaker Features | Speaker Type | Subwoofer |
| Peak Input Power | 1000W | |
| Rated Input Power | 250W | |
| Speaker Size | 250mm | |
| Speaker Cone Design | Carbon-Glass Fiber Honeycomb Cone | |
| Magnet Type | Ferrit | |
| Terminals | Silver-plated Push Type | |
| Heat Transfer Motor Circuit | Yes | |
| Magnet Cover | Aluminum Die-Cast Basket | |
| Gasket Installation | two-sided | |
| Installation Capabillity | Sealed/ Ported |
| Speaker/woofer Specifications | Peak Input Power | 1000W |
| Maximum Input Power | 500W | |
| Rated Input Power | 250W | |
| Woofer Cone material | Carbon-Glass Fiber Honeycomb Cone | |
| Spider Type | Super Linear Spider | |
| Speaker Basket | Aluminum Die-Cast | |
| Weight of Magnet | 1080gr | |
| Speaker Surround | Rubber | |
| Sensitivity | 90dB/W/m | |
| Frequency Response | 35Hz ~ 800Hz | |
| Speaker Impedance | 4Ω | |
| Dimensions (W x H x D) | 275 x 275 x 108mm | |
| Mouting Hole Diameter Ø | 232mm | |
| Mounting Depth | 85mm | |
| Speaker Weight | 4700gr | |
| Gross Weight | 5600gr |
| Subwoofer Parameters | Nominal impedance (Z) | 4Ω |
| DC resistance (Re) | 3.0Ω | |
| Resonant frequency (FSO) | 38.6Hz | |
| Mechanical Q factor (QMS) | 5.279 | |
| Electrical Q factor (QES) | 0.836 | |
| Total Q factor (QTS) | 0.722 | |
| Voice coil inductance (LBM) | 2.1mH | |
| Voice coil diameter (d) | 50mm | |
| Force factor (BL) | 10.7T/m | |
| Peak excursion Xmax | 7.5mm | |
| Moving mass (MMS) | 127gr. | |
| Volume accoustic compliance (VAS) | 21.05liter | |
| Piston Area (SD) | 0.034m² | |
| Displacement | 1110cc | |
| Sealed box volume | 17liter | |
| Sealed Box Dimensions (trapezium shape) | 718 x 324 x 103 x 160mm ( 21mm thick MDF)(WxHxD1xD2) | |
| Vented box volume | 17liter | |
| Vented Box Dimensions (trapezium shape) | 718 x 324 x 103 x 160mm ( 21mm thick MDF)(WxHxD1xD2) | |
| Vented box port diameter/length | Ø 76mm / 280mm |
| Accessories | Screws (Parker-type) | Ø 5 x 30mm, 8 pieces |
| Badge | 2 pieces | |
| Gasket | 1 piece(s) | |
| Cushion | 1 piece(s) |
